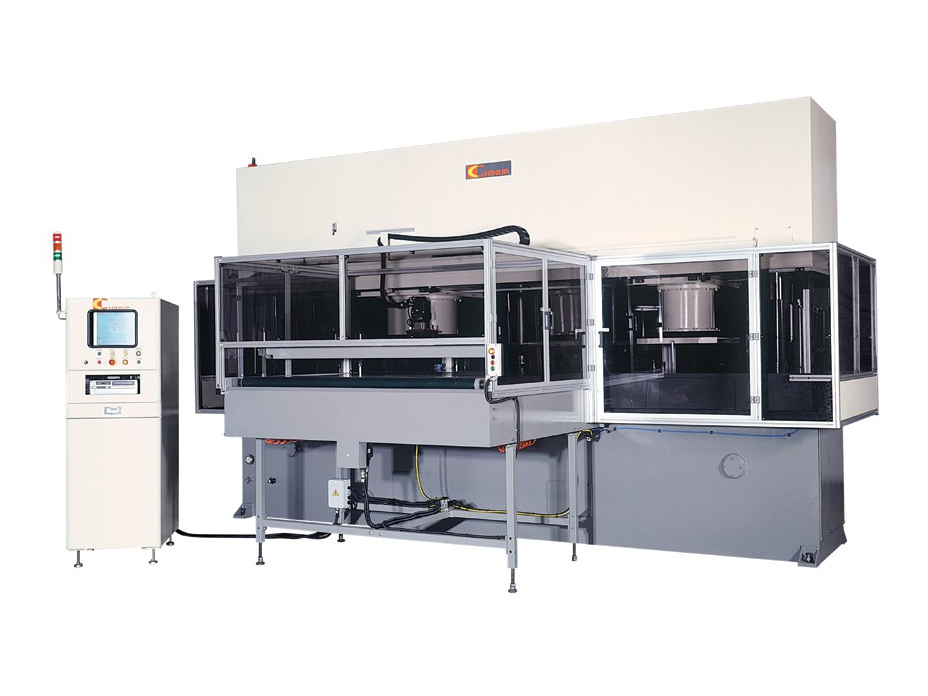

CNC Automatic Traveling Head Die Cutting Machine

Achieve the best yield to save your material.
Increase productivity to enhance your competition ability.

Key Features:

  • Two or three axis servo motor positioning system, position accuracy +/- 0.1mm. The traveling head is driven by servo-drive ball screw.
  • PC based control system with 9999 cutting programs memory for different die shape, program and die change within 5 minutes.
  • Optional rigid stop rods with digital readout ensure positive mechanical restriction of the bottom stroke.

Range of Application:

  • Textile
  • Plastics
  • Rubber
  • Foam
  • Composites
  • Paper
  • Paperboard
  • Wood
  • Leather
  • Cork
  • Felt
  • Gasket
  • Filters
  • Abrasives
  • Shoe Component
  • Sponge
  • Packing
  • Shoulder Pad
  • Caps
  • Linings
  • Shirt Collars
  • Box
  • Brassieres
  • Floor Mats
  • Carpets
  • Toys
  • Medical Supplies
  • Other Suitable Material

Optional Chinup Windows version nesting software is available to achieve the best material yield through computer auto nesting. Material saving is up to 20% and more.

  • One program can contain two cutting permutations.
  • Each program can allow maximum 4 dies doing auto nesting.
